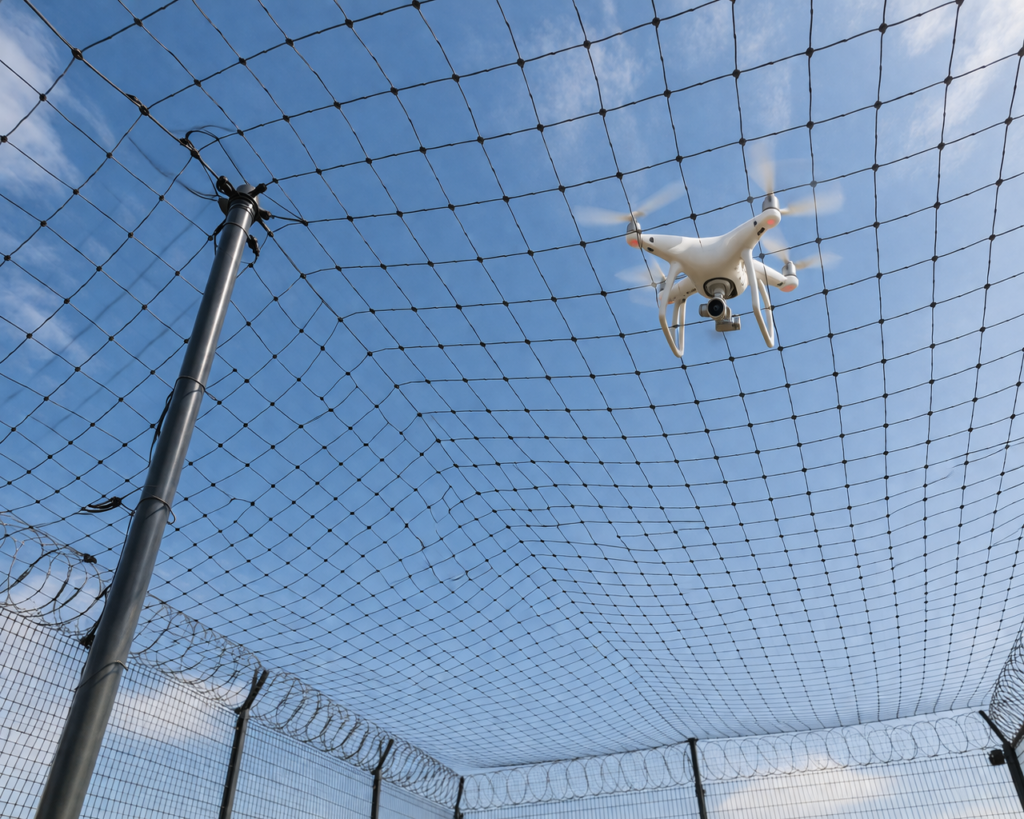

Anti Drone Netting
FAQs Q: What is anti drone netting? A: It is a physical barrier designed to prevent drones from entering restricted areas. Q: Where can it be used? A: Warehouses, airports, military zones, and industrial sites. Q: Is it weather resistant? A: Yes, it is UV stabilized and suitable for outdoor use. Q: Do you […]
Korral Kool Livestock Barn Curtains | UV Resistant Cooling Curtains UAE
Korral Kool Livestock Barn Curtains – UV & Wind Resistant Curtains in UAE Korral Kool livestock barn curtains from IKNAS are specially designed for dairy farms, cattle barns and livestock sheds in the UAE and GCC. These UV resistant cattle barn curtains reduce radiant heat, block harsh sunlight and provide reliable livestock […]
Double Connector
Part No. Hose Bore Dimensions DN L 90012-04 6 83 90012-05 8 87 90012-06 10 87 90012-08 12 91 90012-10 16 97 90012-12 20 110 90012-16 25 134 90012-20 32 153 90012-24 40 172 90012-32 50 178
MATRIC BOLT
Part No. Thread E Dimensions A C S1 700M-10 M10x1 19 6 14 700M-12 M12x1.5 24 6 17 700M-14 M14x1.5 26 6 19 700M-16 M16x1.5 28 6 22 700M-18 M18x1.5 32 6 24 700M-22 M22x1.5 39 7 27 700M-26 M26x1.5 45 7 32 700M-30 M30x1.5 51 7 36
Matric Banjo
Part No. Bolt Hose Bore Dimensions DN d D H 70011-10-03 M10x1 5 10.1 17 10 70011-10-04 M10x1 6 10.1 17 10 70011-12-04 M12x1.5 6 12.1 20 12 70011-12-05 M12x1.5 8 12.1 20 12 70011-12-06 M12x1.5 10 12.1 20 12 70011-14-04 M14x1.5 6 14.1 24 14 70011-14-05 M14x1.5 8 14.1 24 14 70011-14-06 M14x1.5 10 […]
BSP BANJO BOLT
Part No. Thread E Dimensions A C S1 720B-02 G1/8″x28 29.5 4.8 14 720B-04 G1/4″x19 28.5 6 19 720B-06 G3/8″x19 38.5 7 22 720B-08 G1/2″x14 44 8.5 27 720B-10 G5/8″x14 48.5 10 30 720B-12 G3/4″x14 56 10 32 720B-16 G1″x11 68.5 13 41
BSP BANJO
Part No. Thread E Hose Bore Dimensions DN d D H 72011-02-03 G1/8″x28 5 9.9 22 16 72011-02-04 G1/8″x28 6 9.9 22 16 72011-04-03 G1/4″x19 5 13.3 24 15 72011-04-04 G1/4″x19 6 13.3 24 15 72011-04-05 G1/4″x19 8 13.3 24 15 72011-04-06 G1/4″x19 10 13.3 24 15 72011-06-04 G3/8″x19 6 16.7 29 20 72011-06-05 G3/8″x19 […]
Quick Coupling QRC NPT
T COD.(F) COD.(M) 1/4″NPT KSP4.0404.6027 KSP4.0404.8027 3/8″NPT KSP4.0606.6027 KSP4.0606.8027 3/8″NPT KSP4.0606.6027 KSP4.0606.8027 1/2″NPT KSP4.0608.6027 KSP4.0608.8027 1/2″NPT KSP4.0808.6027 KSP4.0808.8027 3/4″NPT KSP4.0812.6027 KSP4.0812.8027 1/2″NPT KSP4.1008.6027 KSP4.1008.8027 3/4″NPT KSP4.1012.6027 KSP4.1012.8027 3/4″NPT KSP4.1212.6027 KSP4.1212.8027 1″NPT KSP4.1216.6027 KSP4.1216.8027 1″NPT KSP4.1616.6027 KSP4.1616.8027 1-1/4″NPT KSP4.1620.6027 KSP4.1620.8027
Quick Coupling QRC BSP
LP ISO L1 L2 L3 ∅D S1 S2 Max. W.P. (Bar) T COD.(F) COD.(M) 04 6.3 101.0 58.0 53.1 28.0 22.0 22.0 300 1/4″BSP KSP1.0404.6017 KSP1.0404.8017 06 10 117.0 68.0 64.0 32.0 27.0 27.0 250 3/8″BSP KSP1.0606.6017 KSP1.0606.8017 1/2″BSP KSP1.0608.6017 KSP1.0608.8017 08 12.5 137.0 84.0 76.0 38.0 32.0 32.0 250 1/2″BSP KSP1.0808.6017 KSP1.0808.8017 36.0 36.0 […]
Inline High Pressure Check Valves CV
CV DIN ISO 228 BSP Standard TYPE PN DN MAX FLOW L/m CRACKING PRESSURE C L M CH Kg. CV G 1/4 400 Bar 6 15 `0.5/1 BAR 54 15 G 1/4 19 0,1 CV G 3/8 400 Bar 10 30 `0.5/1 BAR 64 15 G 3/8 24 0,18 CV G 1/2 400 Bar 13 […]
High Pressure Ball Valves KHB2
STANDARD KHB2 DIN ISO 228 BSP Standard TYPE PN DN A B C D E F G H I L M CH SW LW WEIGHT Kg KHB2 G 1/8 ” 500 Bar 4 35 14 71 42 11 49 30 110 91 11 G 1/8 24 9 4 0,512 KHB2 G 1/4” 500 Bar 6 […]
High Pressure Ball Valves KH3
STANDARD KH3 DIN ISO 228 BSP Standard Type PN DN A B C D E F G G1 H I L M CH SW LW WEIGHT Kg KH3 G 1/8 400 Bar 4 35 14 71 42 11 49 30 48 110 91 11 G 1/8 24 9 4 0,558 KH3 G 1/4 400 Bar […]
ORFS Female Cap
Part No. Thread Dimensions E C L S 9F-04 9/16″x18 8.5 10.5 19 9F-05 11/16″x16 10 13 22 9F-08 13/16″x16 11 14 27 9F-10 1″x14 13.5 16 30 9F-12 1.3/16″x12 15 15 36 9F-16 1.7/16″x12 15 18 41 9F-20 1.11/16″x12 15 19 50 9F-24 2″x12 16 21 60
NPT Socket
Part No. Thread Dimensions E F L S 7N-02 Z1/8″x27 Z1/8″x27 19 17 7N-02-04 Z1/8″x27 Z1/4″x18 27 19 7N-02-06 Z1/8″x27 Z3/8″x18 30 22 7N-04 Z1/4″x18 Z1/4″x18 29 19 7N-04-06 Z1/4″x18 Z3/8″x18 31 22 7N-04-08 Z1/4″x18 Z1/2″x14 35 30 7N-06 Z3/8″x18 Z3/8″x18 29 22 7N-06-08 Z3/8″x18 Z1/2″x14 38 30 7N-06-12 Z3/8″x18 Z3/4″x14 40 36 Part No. […]
NPT MALE FEMALE ADOPTER BOX TYPE
Part No. Thread Dimensions E F S A L 5N-02 Z1/8″x27 Z1/8″x27 17 10.5 26.4 5N-04-02 Z1/4″x18 Z1/8″x27 17 15 22 5N-04 Z1/4″x18 Z1/4″x18 19 15 35.5 5N-04-06 Z1/4″x18 Z3/8″x18 24 15 37 5N-06-04 Z3/8″x18 Z1/4″x18 19 16 22 5N-06 Z3/8″x18 Z3/8″x18 24 16 37 5N-06-08 Z3/8″x18 Z1/2″x14 30 16 43 5N-08-06 Z1/2″x14 Z3/8″x18 24 […]
NPT Male Plug
Part No. Thread Dimensions E A L S 4N-02 Z1/8″x27 10.5 16 12 4N-04 Z1/4″x18 15 20 17 4N-06 Z3/8″x18 16 21 19 4N-08 Z1/2″x14 19.5 27 22 4N-12 Z3/4″x14 19.5 29.5 27 4N-16 Z1″x11.5 25.5 36.5 36 4N-20 Z1.1/4″x11.5 26.5 38.5 46 4N-24 Z1.1/2″x11.5 27.5 43 50 4N-32 Z2″x11.5 27.5 43.5 65
JIC Male Plug
Part No. Thread Dimensions E A L S 4J-04 7/16″x20 14 20.3 12 4J-05 1/2″x20 14 20.3 14 4J-06 9/16″x18 14.1 21.3 17 4J-08 3/4″x16 16.7 23.9 22 4J-10 7/8″x14 19.3 27.9 24 4J-12 1.1/16″x12 21.9 32.5 30 4J-14 1.3/16″x12 22.6 33.3 32 4J-16 1.5/16″x12 23.1 34 36 4J-20 1.5/8″x12 24.3 36.8 46 4J-24 1.7/8″x12 […]
NPT Male NPSM Female
Part No. Thread Dimensions E F A C L S1 S2 2NU-02-04 Z1/8″x27 1/4″x18 10.5 4.6 27.5 12 19 2NU-04 Z1/4″x18 1/4″x18 15 4.6 32 17 19 2NU-06 Z3/8″x18 3/8″x18 16 6 35.3 19 22 2NU-08 Z1/2″x14 1/2″x14 19.5 7.5 41.5 22 27 2NU-12 Z3/4″x14 3/4″x14 19.5 8.9 44.5 30 32 2NU-16 Z1″x11.5 1″x11.5 25.5 […]
NPT Elbow 90
NPT Adopter
Part No. Thread Dimensions E F A B L S 1N-02 Z1/8″x27 Z1/8″x27 10.5 10.5 27 12 1N-02-04 Z1/8″x27 Z1/4″x18 10.5 15 31 17 1N-02-06 Z1/8″x27 Z3/8″x18 10.5 16 32 19 1N-04 Z1/4″x18 Z1/4″x18 15 15 37 17 1N-04-06 Z1/4″x18 Z3/8″x18 15 16 37 19 1N-04-08 Z1/4″x18 Z1/2″x14 15 19.5 41.5 22 1N-06 Z3/8″x18 Z3/8″x18 […]
JIC X JIC ORING Box Adopter
Part No. THREAD O-RING DIMENSIONS E F F A B L S 1JO-04 7/16″x20 7/16″x20 O8.921.83 14 9.14 31.2 14 1JO-04-05 7/16″x20 1/2″x20 O10.52×1.83 14 9.14 31.2 17 1JO-04-06 7/16″x20 9/16″x18 O11.89×1.98 14 9.93 32.7 17 1JO-05 1/2″x20 1/2″x20 O10.52×1.83 14 9.14 31.2 17 1JO-05-04 1/2″x20 7/16″x20 O8.92×1.83 14 9.14 31 14 1JO-05-06 1/2″x20 9/16″x18 […]
JIC NPT Adopter
Part No. THREAD DIMENSIONS E F A B L S 1JN-02 5/16″x24 Z1/8″x27 11.4 10.5 28 12 1JN-04-02 7/16″x20 Z1/8″x27 14 10.5 31 12 1JN-04 7/16″x20 Z1/4″x18 14 15 36 17 1JN-04-06 7/16″x20 Z3/8″x18 14 16 37 19 1JN-04-08 7/16″x20 Z1/2″x14 14 19.5 43 22 1JN-05-04 1/2″x20 Z1/4″x18 14 15 36 17 1JN-05-06 1/2″x20 Z3/8″x18 […]
JIC Female Cap
Part No. THREAD DIMENSIONS E C L S 9J-04 7/16″x20 9 10.5 15 9J-05 1/2″x20 9.5 11 17 9J-06 9/16″x18 10.5 11 19 9J-08 3/4″x16 11 13 24 9J-10 7/8″x14 13 13.5 27 9J-12 1.1/16″x12 15 15 32 9J-14 1.3/16″x12 15 15 36 9J-16 1.5/16″x12 16 15.5 41 9J-20 1.5/8″x12 17 18.5 50 9J-24 1.7/8″x12 […]
JIC Bulk Head
JIC Female Coupling
Part No. Thread Dimensions E F C1 C2 L S1 S2 3J-04 7/16″x20 7/16″x20 9 9 19 15 15 3J-05 1/2″x20 1/2″x20 9.5 9.5 21 17 17 3J-06 9/16″x18 9/16″x18 10.5 10.5 21 19 19 3J-06-08 9/16″x18 3/4″x16 10.5 11 23 19 19 3J-08 3/4″x16 3/4″x16 11 11 26 24 24 3J-10 7/8″x14 7/8″x14 13 […]
JIC Male Female 90 Swivel Type
Part No. Thread Dimensions E F A C S1 S2 2J9-04 7/16″x20 7/16″x20 22.6 9 11 15 2J9-05 1/2″x20 1/2″x20 24.1 9.5 14 17 2J9-06 9/16″x18 9/16″x18 26.9 10.5 14 19 2J9-06-08 9/16″x18 3/4″x16 28.5 11 16 24 2J9-08-06 3/4″x16 9/16″x18 32 10.5 19 19 2J9-08 3/4″x16 3/4″x16 32 11 19 24 2J9-08-10 3/4″x16 7/8″x14 […]
JIC Male Male 90 Elbow
Part No. Thread Dimensions E F A B S 1J9-02 5/16″x24 5/16″x24 19.6 20.5 11 1J9-03 3/8″x24 3/8″x24 21.1 22 11 1J9-04 7/16″x20 7/16″x20 23 23 11 1J9-05 1/2″x20 1/2″x20 24.5 24.5 14 1J9-05-06 1/2″x20 9/16″x18 24.5 26.9 14 1J9-06 9/16″x18 9/16″x18 26.9 26.9 14 1J9-06-08 9/16″x18 3/4″x16 30 32 19 1J9-06-10 9/16″x18 7/8″x14 32 […]
JIC Male Female STR Swivel Type
Part No. Thread Dimensions E F A L S1 S2 2J-04 7/16″x20 7/16″x20 14 28 12 15 2J-04-05 7/16″x20 1/2″x20 14 28.5 12 17 2J-04-06 7/16″x20 9/16″x18 14 28.5 14 19 2J-04-08 7/16″x20 3/4″x16 14 30.5 19 24 2J-05 1/2″x20 1/2″x20 14 29 14 17 2J-05-06 1/2″x20 9/16″x18 14 28.5 14 19 2J-05-08 1/2″x20 3/4″x16 […]
ORFS Bulk Head
Part No. Thread Dimensions E F A B L S S1 6F-04 9/16″x18 9/16″x18 9.8 31.5 48.2 22 22 6F-06 11/16″x16 11/16″x16 11.2 34 53.2 27 27 6F-08 13/16″x16 13/16″x16 12.8 36.5 58.3 30 30 6F-10 1″x14 1″x14 15.5 40.6 66.6 36 36 6F-12 1.3/16″x12 1.3/16″x12 17 41.7 69.2 38 38 6F-16 1.7/16″x12 1.7/16″x12 17.5 […]
JIC Male Adopter
Part No. Thread Dimensions E F A B L S 1J-02 5/16″x24 5/16″x24 11.4 11.4 29.7 12 1J-02-03 5/16″x24 3/8″x24 11.4 12.2 29.5 12 1J-03 3/8″x24 3/8″x24 12.2 12.2 31.2 12 1J-04 7/16″x20 7/16″x20 14 14 34.8 12 1J-04-05 7/16″x20 1/2″x20 14 14 34 14 1J-04-06 7/16″x20 9/16″x18 14 14.1 36 17 1J-04-08 7/16″x20 3/4″x16 […]
ORFS Male Female Elbow
Part No. Thread Dimensions O-Ring E F A C S1 S2 E 2F9-04 9/16″x18 9/16″x18 21.5 8.5 14 19 07.65×1.78 2F9-04-06 9/16″x18 11/16″x16 23 10 14 22 07.65×1.78 2F9-06-04 11/16″x16 9/16″x18 25 8.5 19 19 09.25×1.78 2F9-06 11/16″x16 11/16″x16 25 10 19 22 09.25×1.78 2F9-06-08 11/16″x16 13/16″x16 25 11 19 27 09.25×1.78 2F9-08-06 13/16″x16 11/16″x16 […]
BSP Run Tee
Part No. Thread Dimensions E F G A B C S S1 CB-02 G1/8″x28 G1/8″x28 G1/8″x28 19.8 19.8 5.5 11 14 CB-04 G1/4″x19 G1/4″x19 G1/4″x19 25 25 5.5 14 19 CB-06 G3/8″x19 G3/8″x19 G3/8″x19 27.5 27.5 6.3 16 22 CB-08 G1/2″x14 G1/2″x14 G1/2″x14 34.5 34.5 7.5 22 27 CB-10 G5/8″x14 G5/8″x14 G5/8″x14 34.5 34.5 9.5 […]
BSP Bulk Nipple
Part No. Thread Dimensions E F A B L S1 S2 6B-02 G1/8″x28 G1/8″x28 10 33 49 14 14 6B-04 G1/4″x19 G1/4″x19 12 35 53 19 19 6B-04-06 G1/4″x19 G3/8″x19 12 35 55 22 22 6B-06 G3/8″x19 G3/8″x19 13.5 35 56.5 22 22 6B-06-08 G3/8″x19 G1/2″x14 13.5 39 62.5 27 27 6B-08 G1/2″x14 G1/2″x14 16 […]

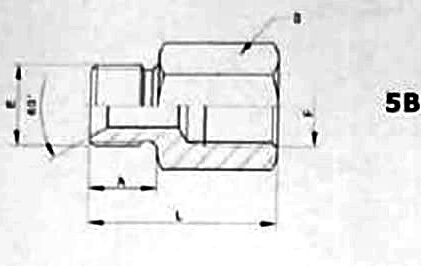

BSP Red Bush
Part No. Thread Dimensions E F A L S 5B-02-04 G1/8″x28 G1/4″x19 10 29 19 5B-04-02 G1/4″x19 G1/8″x28 12 28 19 5B-04 G1/4″x19 G1/4″x19 12 33 19 5B-04-06 G1/4″x19 G3/8″x19 12 36 22 5B-06-04 G3/8″x19 G1/4″x19 13.5 33.5 22 5B-06 G3/8″x19 G3/8″x19 13.5 37.5 22 5B-06-08 G3/8″x19 G1/2″x14 13.5 42.5 27 5B-08-06 G1/2″x14 G3/8″x19 16 […]
BSP Male Tee
Part No. Thread Dimensions E F G A B C S AB-02 G1/8″x28 G1/8″x28 G1/8″x28 19.8 19.8 19.8 11 AB-04 G1/4″x19 G1/4″x19 G1/4″x19 25 25 25 14 AB-04-06-04 G1/4″x19 G3/8″x19 G1/4″x19 26.5 27.5 26.5 16 AB-06 G3/8″x19 G3/8″x19 G3/8″x19 27.5 27.5 27.5 16 AB-06-08-06 G3/8″x19 G1/2″x14 G3/8″x19 31 34.5 31 22 AB-08 G1/2″x14 G1/2″x14 G1/2″x14 […]
BSP Branch Tee
Part No. Thread Dimensions E F G A B C S S1 BB-02 G1/8″x28 G1/8″x28 G1/8″x28 19.8 5.5 19.8 11 14 BB-04 G1/4″x19 G1/4″x19 G1/4″x19 25 5.5 25 14 19 BB-06 G3/8″x19 G3/8″x19 G3/8″x19 27.5 6.3 27.5 16 22 BB-08 G1/2″x14 G1/2″x14 G1/2″x14 34.5 7.5 34.5 22 27 BB-12 G3/4″x14 G3/4″x14 G3/4″x14 40 10.9 40 […]
BSP Male Plug
BSP Female Coupling
Part No. Thread Dimensions E F C1 C2 L S1 S2 3B-02 G1/8″x28 G1/8″x28 5.5 5.5 21 14 14 3B-02-04 G1/8″x28 G1/4″x19 5.5 5.5 23 14 19 3B-04 G1/4″x19 G1/4″x19 5.5 5.5 25 19 19 3B-04-06 G1/4″x19 G3/8″x19 5.5 6.3 26.5 19 22 3B-04-08 G1/4″x19 G1/2″x14 5.5 7.5 28.5 19 27 3B-06 G3/8″x19 G3/8″x19 6.3 […]
BSP Male Female Elbow
Part No. Thread Dimensions E F A C S1 S2 2B9-02 G1/8″x28 G1/8″x28 19.8 5.5 11 14 2B9-04 G1/4″x19 G1/4″x19 24.5 5.5 14 19 2B9-04-06 G1/4″x19 G3/8″x19 25 6.3 14 22 2B9-06 G3/8″x19 G3/8″x19 27.5 6.3 16 22 2B9-06-04 G3/8″x19 G1/4″x19 27.5 5.5 16 19 2B9-08 G1/2″x14 G1/2″x14 34.5 7.5 22 27 2B9-08-06 G1/2″x14 G3/8″x19 […]
BSP Male Female Swivel
Part No. Thread Dimensions E F A C L S1 S2 2B-02 G1/8″x28 G1/8″x28 10 5.5 25 14 14 2B-02-04 G1/8″x28 G1/4″x19 10 5.5 27 14 19 2B-04 G1/4″x19 G1/4″x19 12 5.5 29 19 19 2B-04-06 G1/4″x19 G3/8″x19 12 6.3 30.5 19 22 2B-04-08 G1/4″x19 G1/2″x14 12 7.5 32 19 27 2B-06 G3/8″x19 G3/8″x19 13.5 […]
